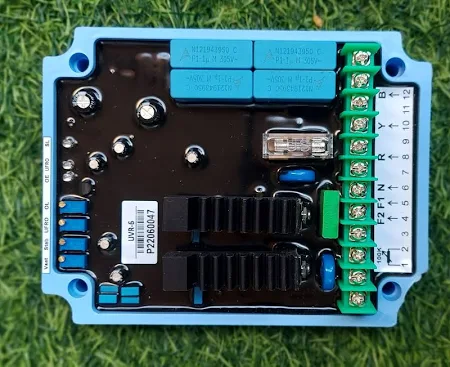

Uvr 6 Automatic Voltage Regulator, 50 ~ 280v Dealer in Faridabad
| Input Voltage | 50 ~ 280V |
| Output Voltage | 63 Vdc |
| Model Name/Number | UVR 6 |
| Weight | 520g |
| Dimensions | 150mmx114.7mmx35.2mm |
| Storage Temperature | -40 ~ 80 Degree Celsius |
| Operating Temperature | -40 ~ 65 Degree Celsius |
| Unit Power Dissipation | 5W |
| Under Frequency Protection | Adjustable Range 42 ~ 62 Hz |
| Over Excitation Protection | 25 ~ 55vdc @ 0.1 ~ 20sec |
| External Vr | 100k Ohm 1/2 Watt +- 5% |
| Residual Voltage at Avr Terminal | 5 Vac, 25hz |
| Voltage Regulation | +-1% |
| Exciter Field Dc Resistance | 10 ~ 100 Ohm |
| Current Continuous | 6A |
| Max. Intermittent | 7A for 10 Sec |
